Tutorial: Hello, Quarto

TipR or Python?

You can work through this tutorial using R or Python code examples. Select your preferred language:

R

You’ve selected to see examples in R. You can toggle to Python whenever you like throughout the guide.

Python

You’ve selected to see examples in Python. You can toggle to R whenever you like throughout the guide.

Overview

Quarto is an open-source scientific and technical publishing system that weaves together code and narrative to produce high-quality documents, presentations, websites, and more. In this tutorial, you’ll learn how to use Positron with Quarto.

Positron comes ready to work with Quarto out-of-the-box — it includes both the Quarto command line interface and the Quarto VS Code extension.

It includes many tools that enhance working with Quarto, including:

• Integrated render and preview for Quarto documents

• Completion and diagnostics for Quarto options

• Positron’s full R and Python support for code that is inside a Quarto document, including interactive execution of code in the Console, code completion, help, and diagnostics.

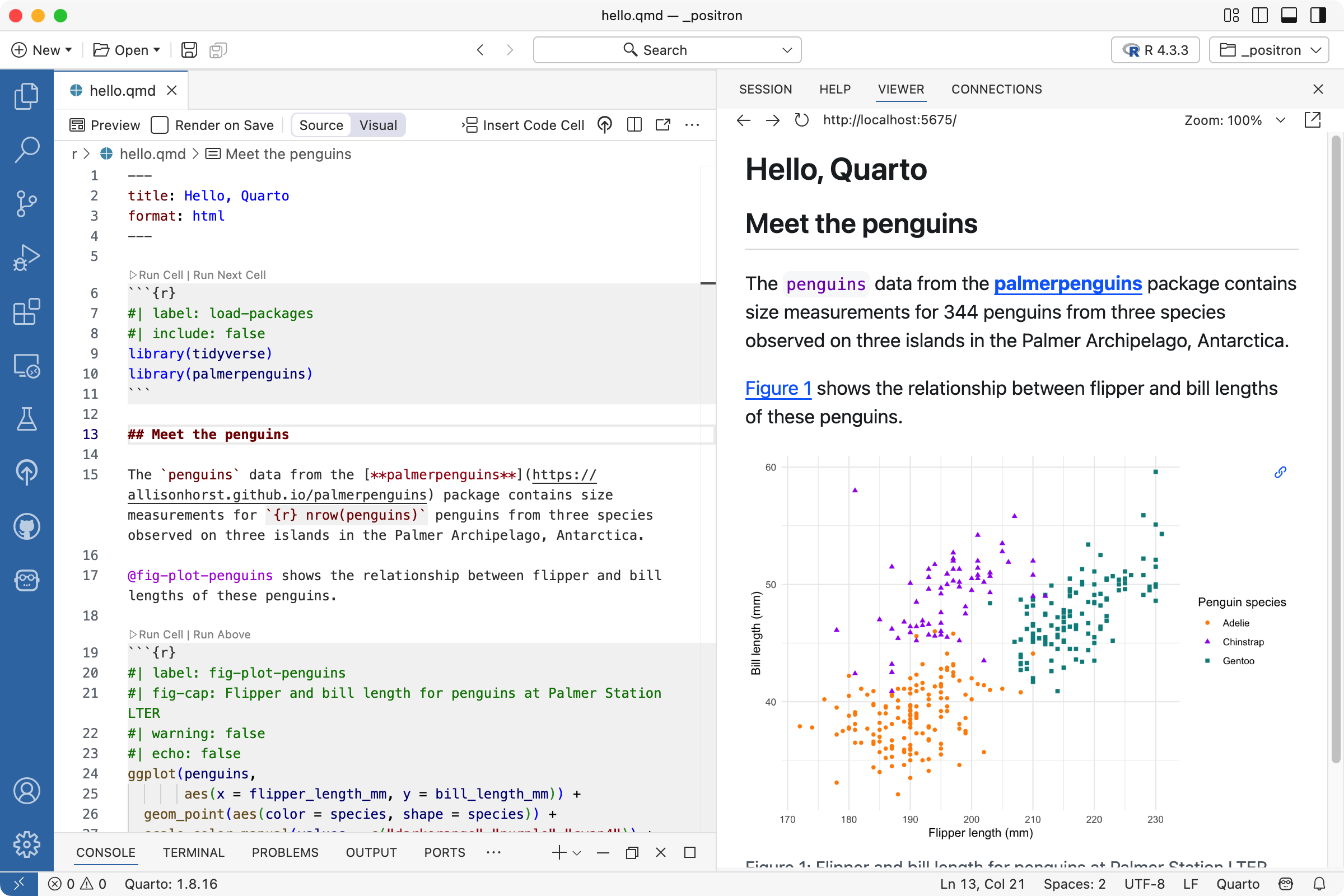

Here’s a sample Quarto document, hello.qmd, open in Positron, demonstrating the seamless side-by-side editing and preview experience:

R

Python

On this page, you’ll learn:

• The basic edit, then preview, workflow for Quarto documents in Positron.

• The three components a Quarto document—header, code cells, and markdown—and how they combine to produce a rendered output.

Setup

If you would like to follow along with this tutorial in your own environment, follow the steps outlined below.

R

1. Be sure that you have installed the rmarkdown, tidyverse and palmerpenguins packages:

   install.packages("rmarkdown")
   install.packages("tidyverse")
   install.packages("palmerpenguins")

2. Download the Quarto document (hello.qmd) below and open it in Positron.

   Download hello.qmd

Python

1. Install the jupyter and plotnine packages using your preferred method. For example, with pip:

   pip install jupyter plotnine

2. Download the Quarto document (hello.qmd) below and open it in Positron.

   Download hello.qmd

Basic Workflow

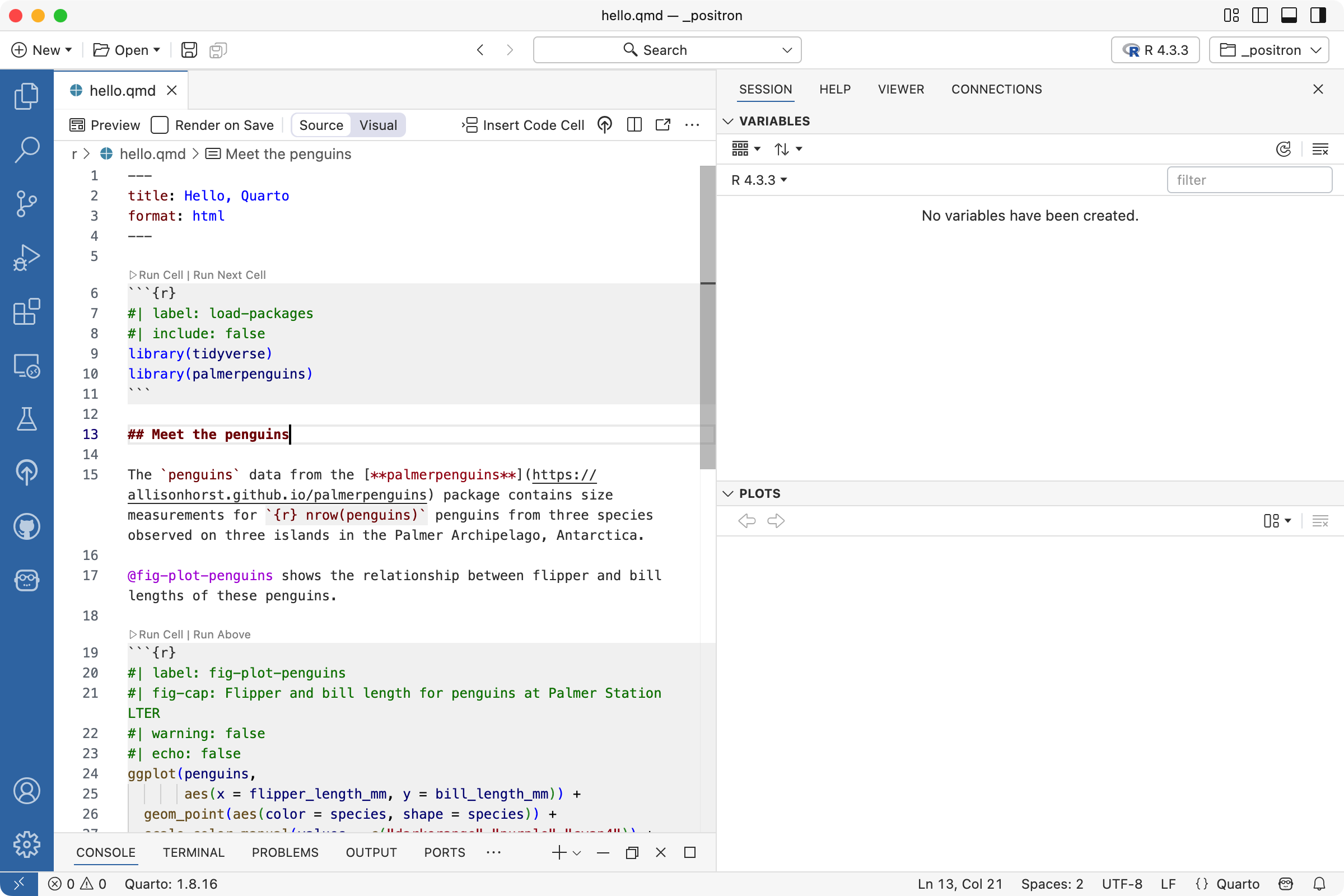

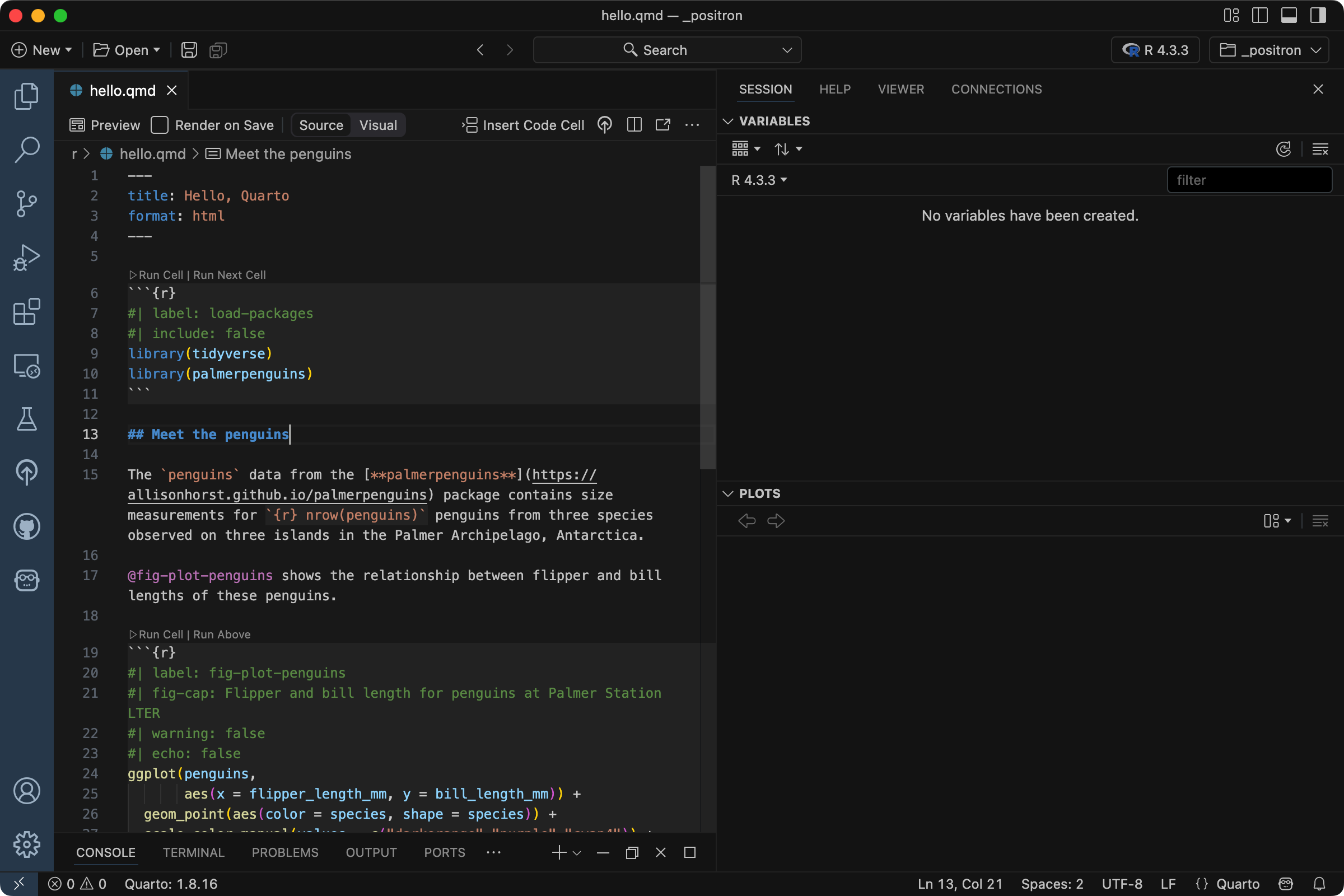

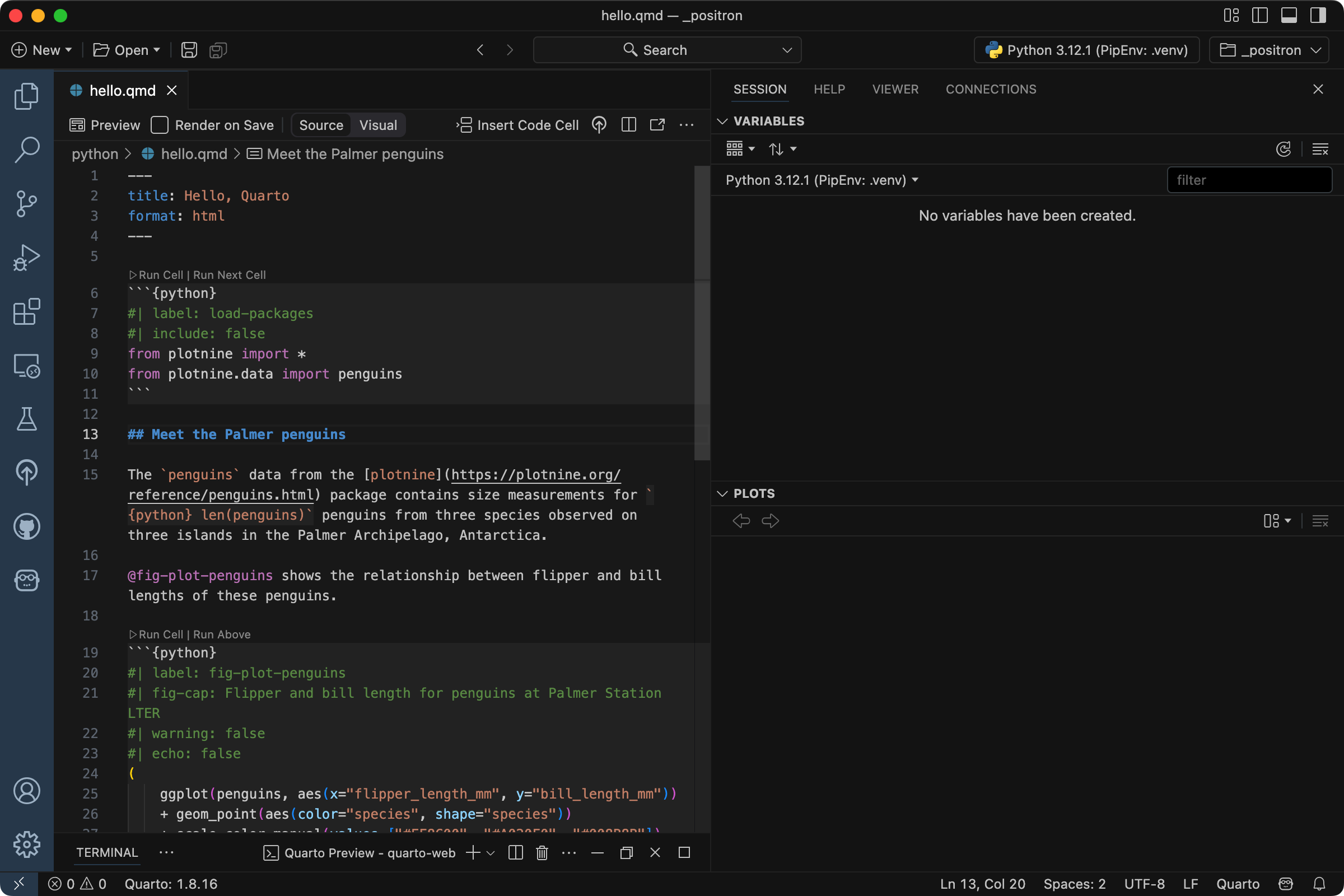

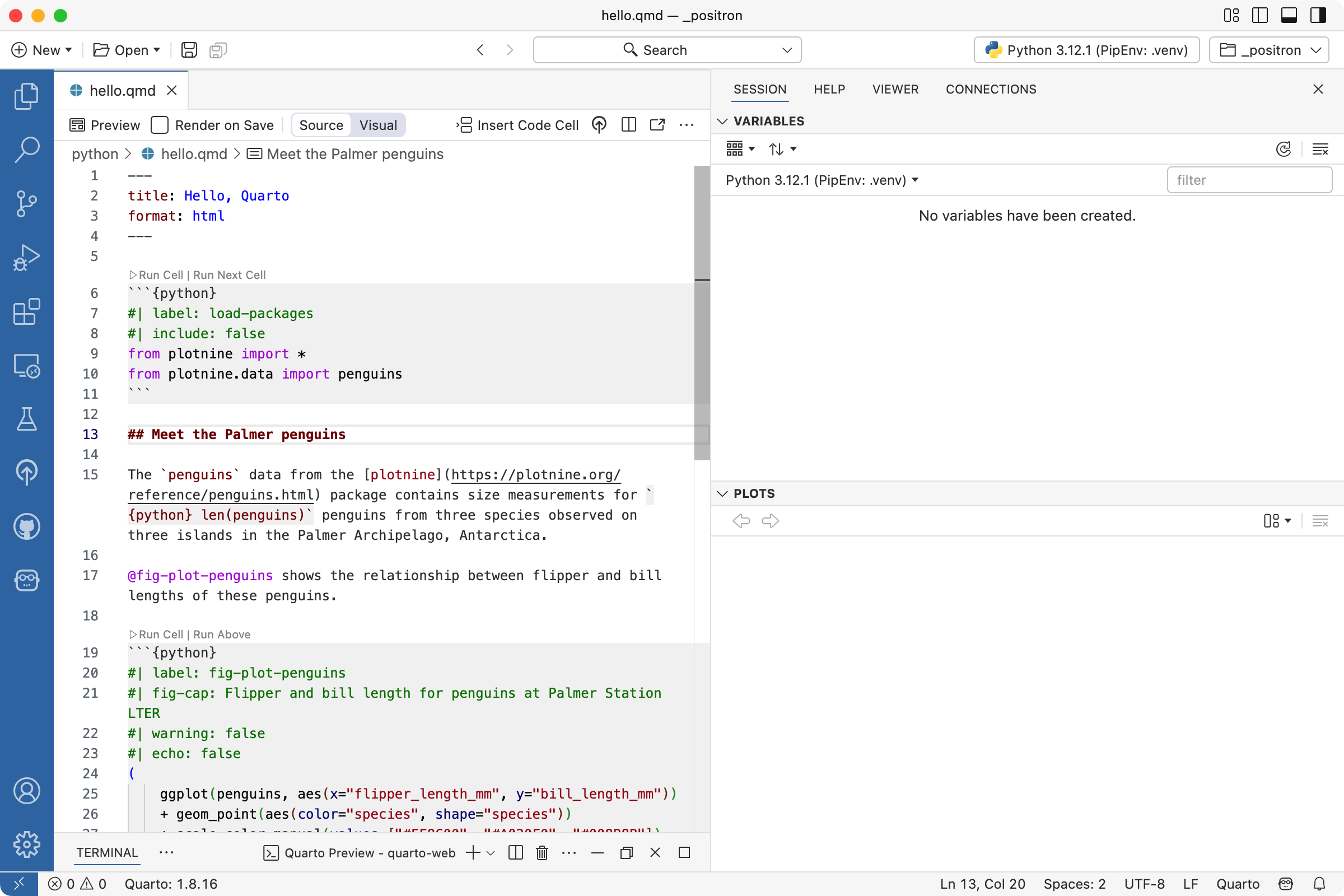

Quarto documents with the extension .qmd are a plain text format and will open in Positron’s Editor pane.

R

Python

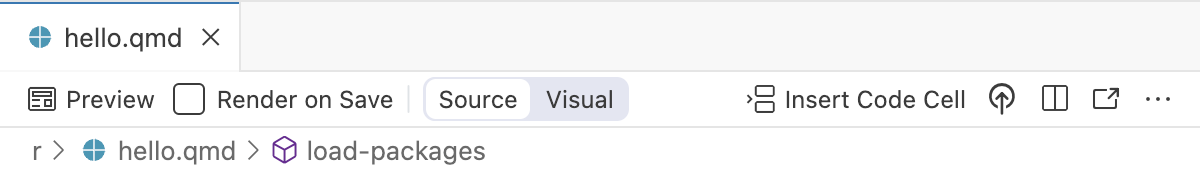

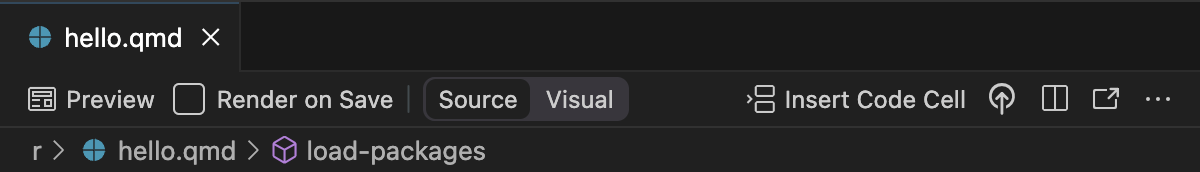

To preview the document, execute the Quarto: Preview command. You can alternatively use the keyboard shortcut , or the Preview button () in the editor toolbar:

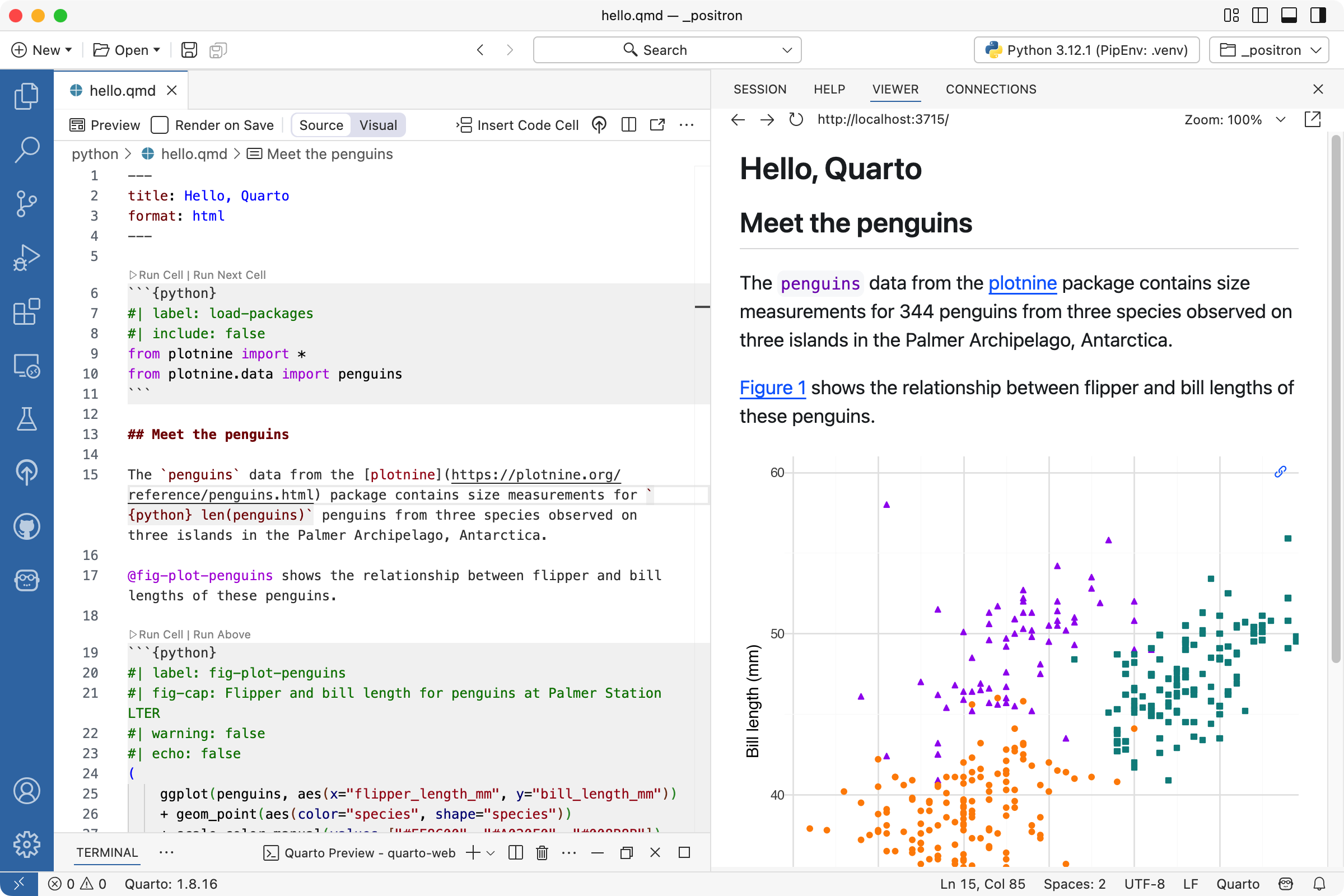

Quarto will process the document, and the output will preview in the Viewer pane.

R

Python

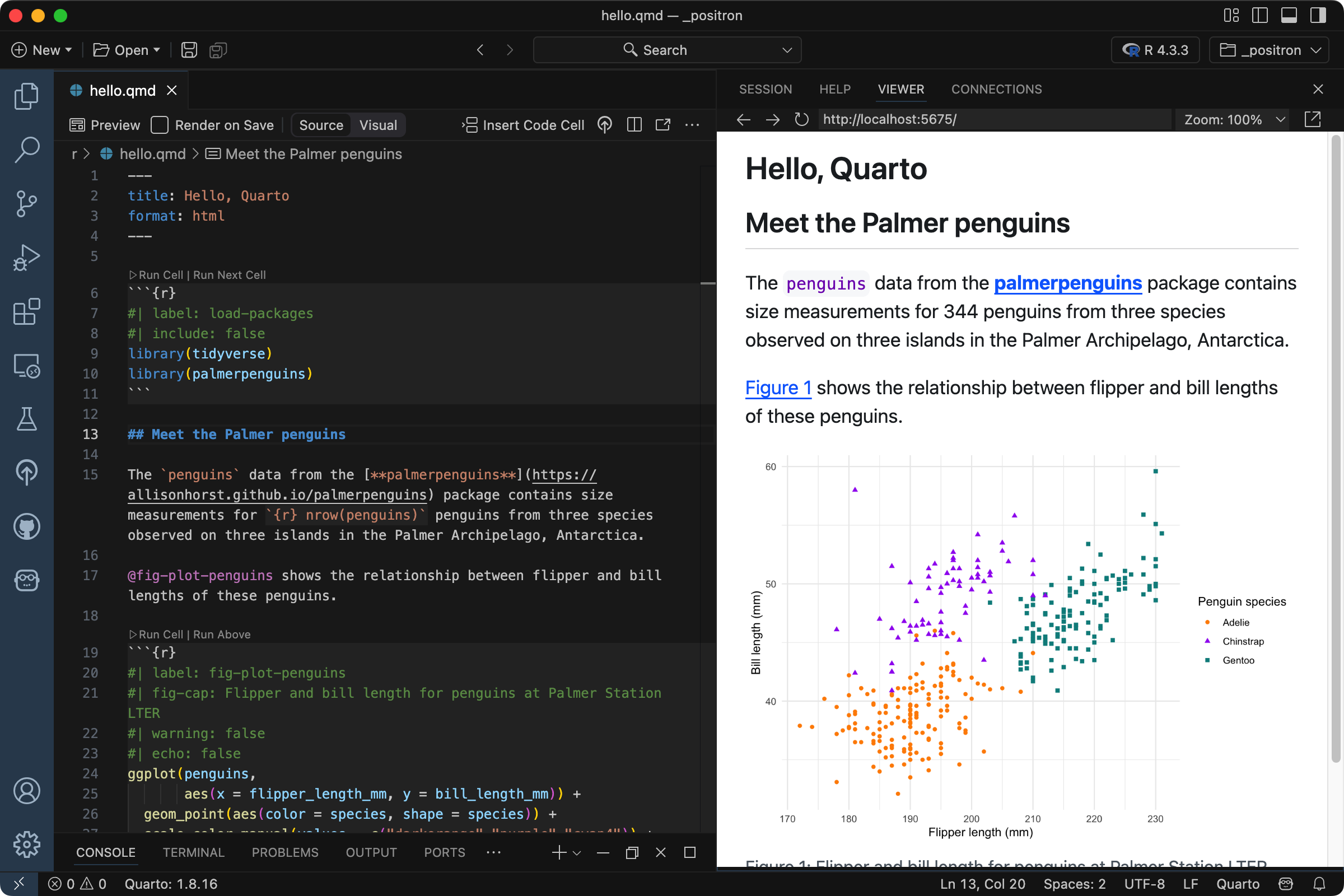

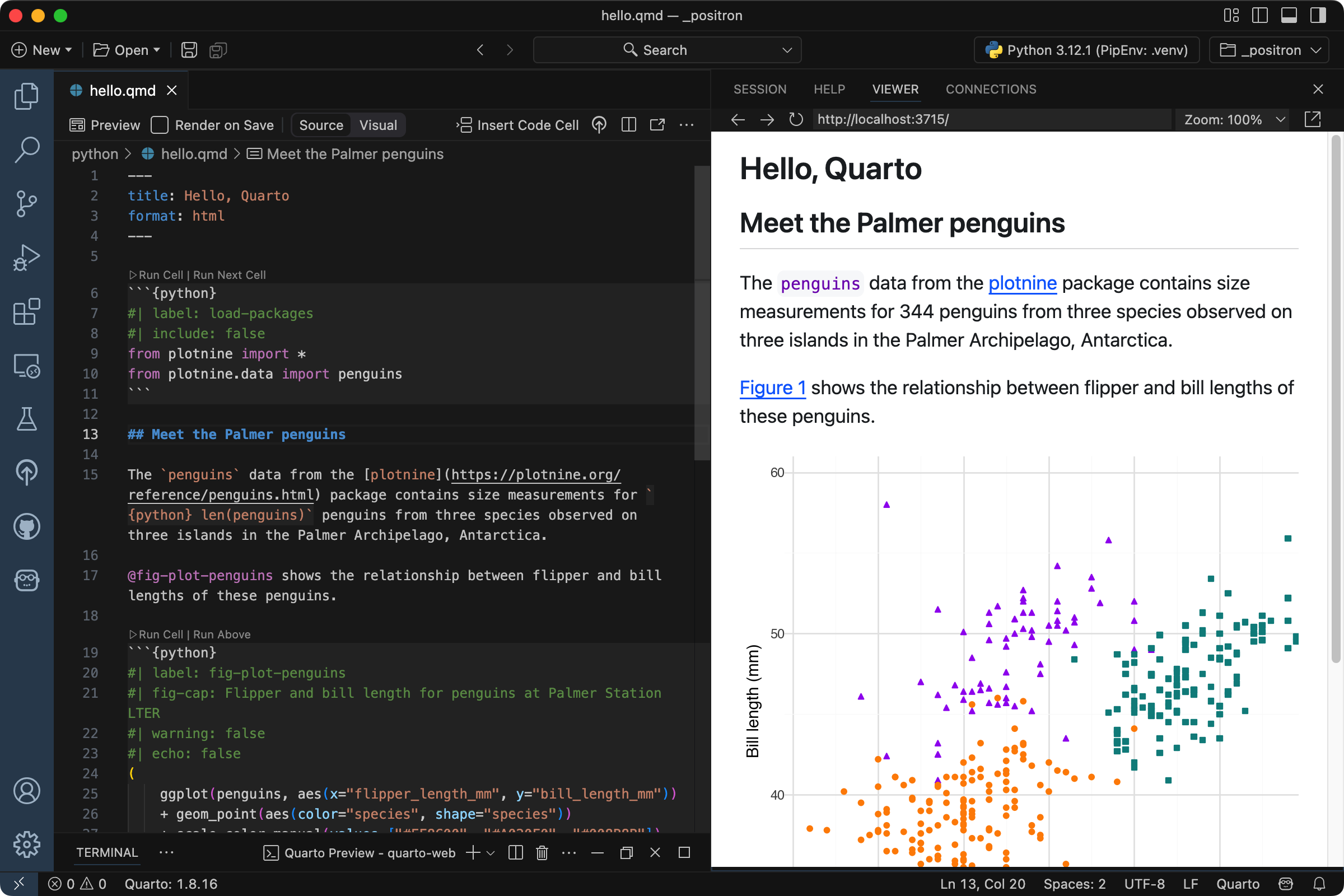

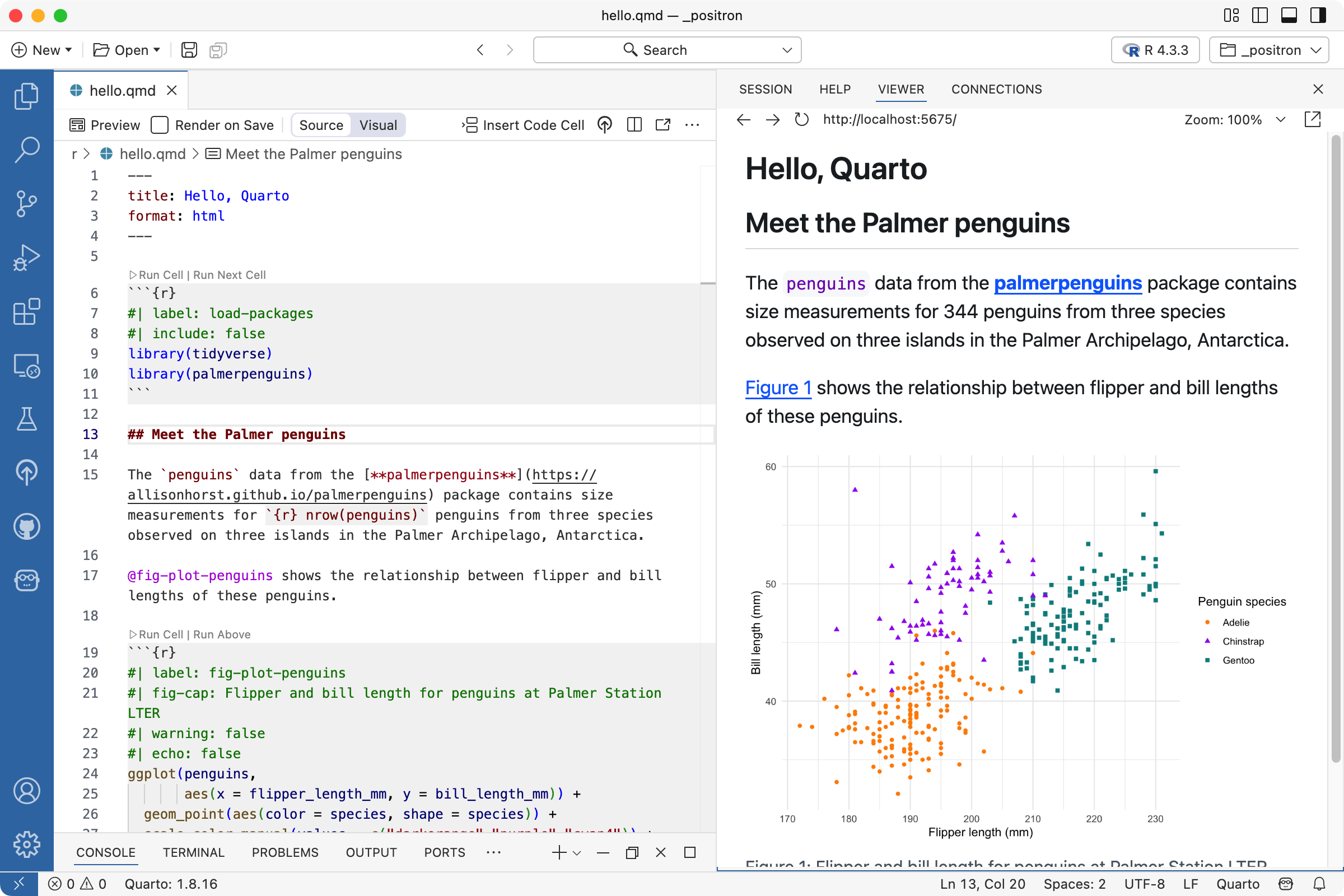

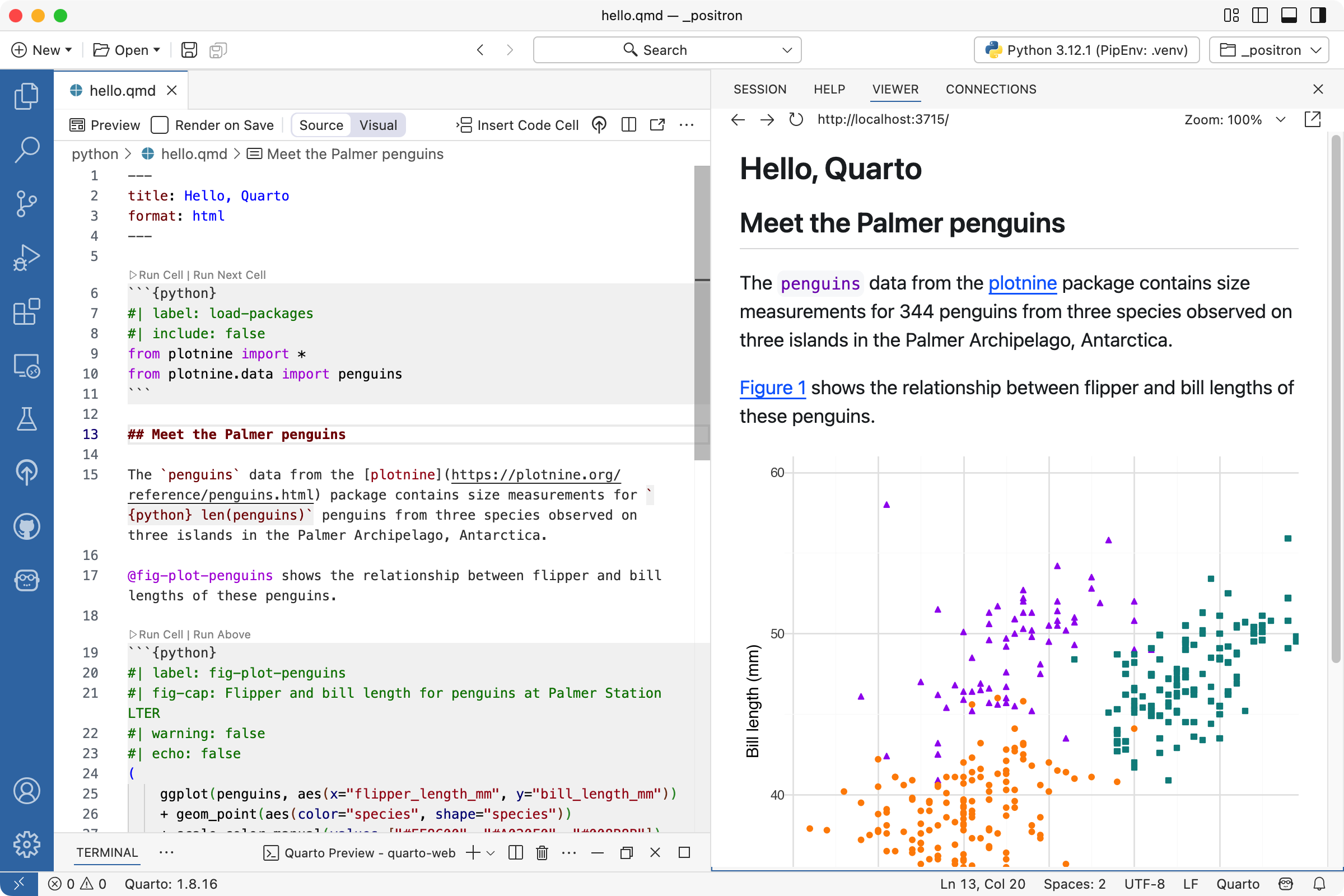

The preview will update whenever you rerun the Quarto: Preview command. For example, change the section heading ## Meet the penguins to ## Meet the Palmer penguins and rerun the Quarto: Preview command. The preview in the Viewer will update to reflect the change.

R

Python

If you prefer the preview to update whenever you save the document, you can check the Render on Save box in the editor toolbar.

Rendering

The document, hello.qmd, is a combination of markdown and executable code cells. Quarto uses the term render to describe the process of taking this source document and producing a new file that combines the output from the executed code cells with the markdown. When hello.qmd is rendered, the new output is hello.html, an HTML document, but it could be a PDF, MS Word document, presentation, website, book, interactive document, or other format.

This is the basic model for Quarto publishing—take a source document that combines code and narrative, and render it to a variety of output formats.

The Quarto: Preview command encompasses two actions: rendering the document, and previewing the resulting file. HTML and PDF formats will open in Positron’s Viewer pane resulting in a side-by-side preview. Other formats, like MS Word, will open externally.

You can also render the document without previewing it by executing the Quarto: Render Document command.

TipQuarto is a command line tool

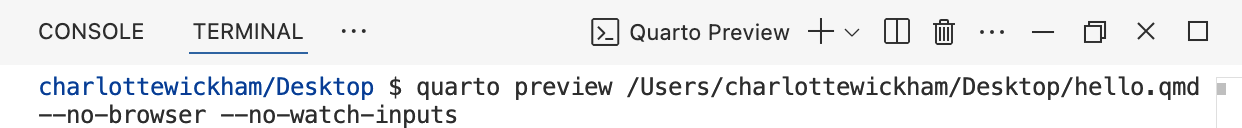

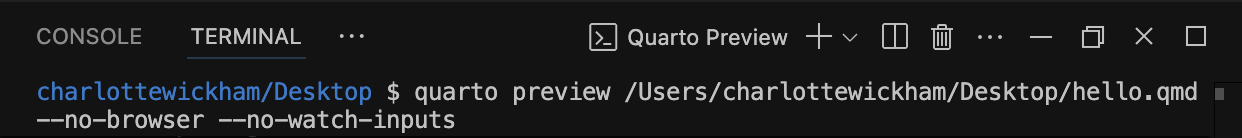

When you run the Quarto: Preview command, you will notice the Terminal executes quarto preview:

The Quarto extension provides Positron commands as convenient alternatives to running quarto commands in the Terminal, but you can also run the commands directly if you prefer.

Authoring

Let’s turn our attention to the contents of our Quarto document. The file contains three types of content: a header, executable code cells, and markdown text.

Document header

At the top of the file is the document header demarcated by three dashes (---) on either end:

---
title: Hello, Quarto
format: html
---

Inside the header, document-level options are specified using YAML. The basic syntax of YAML uses key-value pairs in the format key: value.

In this case, the title is set to "Hello, Quarto" and the format is set to html. When rendered, the title, will appear at the top of the rendered document with a larger font size than the rest of the document. The format field denotes the target format for the output.

Other options commonly found in headers of documents include metadata like author, subtitle, and date, as well as customizations like theme, fontcolor, fig-width, etc. The available options depend on the output format and are listed in the Reference e.g.: HTML options, PDF options and MS Word options.

Code cells

Code cells contain executable code to be run during render, with the output (and optionally the code) included in the rendered document.

R

Code cells are identified with {r}:

```{r}
#| label: load-packages
#| include: false
library(tidyverse)
library(palmerpenguins)
```

Python

Code cells are identified with {python}:

```{python}
#| label: load-packages
#| include: false
from plotnine import *
from plotnine.data import penguins
```

Code cell options are set at the top of a code cell using special comments that start with #|. The options themselves are specified using YAML syntax. In this case, the label of the code cell is load-packages, and include is set to false to indicate that neither the code nor any of its outputs should appear in the rendered document. There are a wide variety of code cell options you can apply to tailor your output, you can learn more in the next tutorial on Computations.

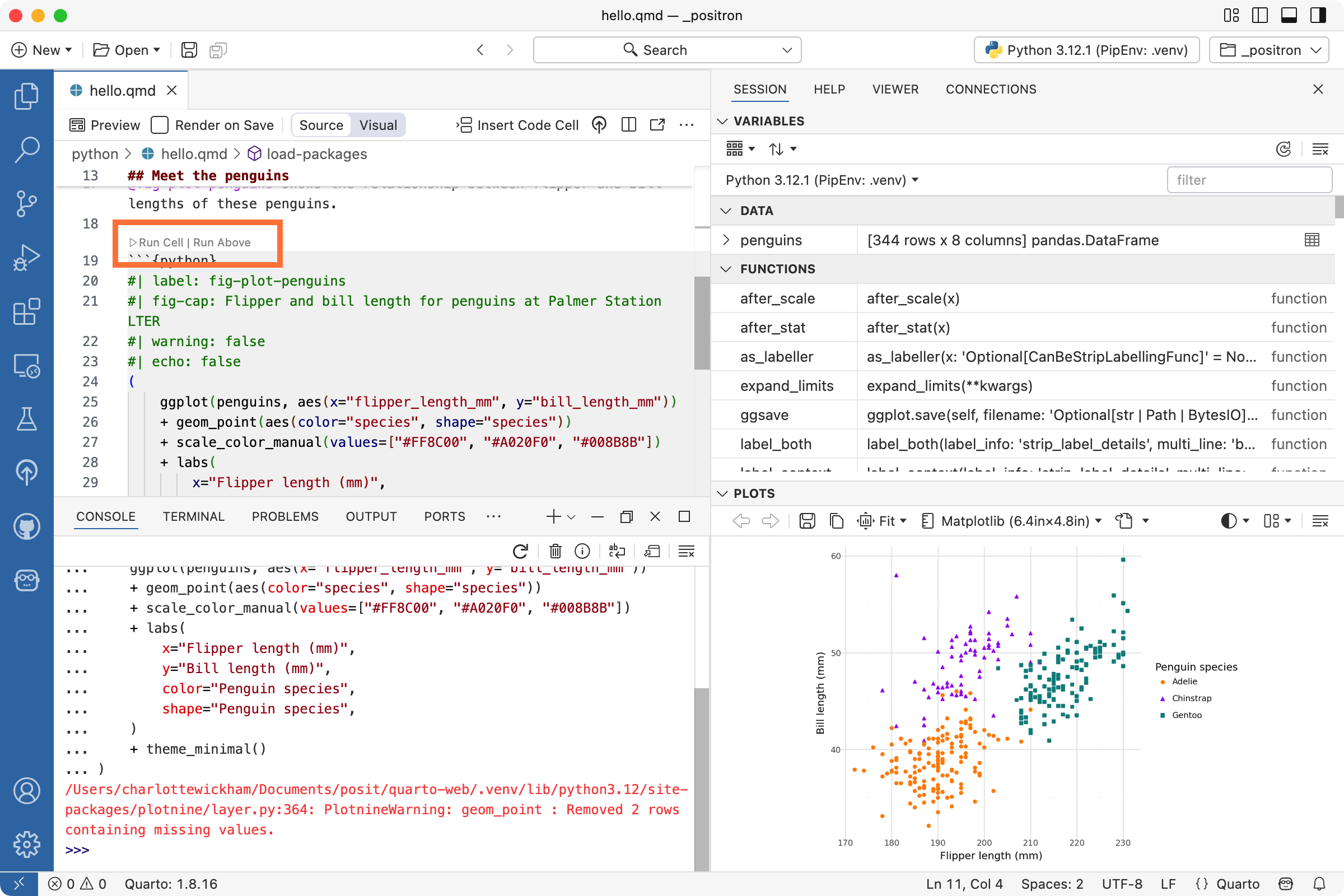

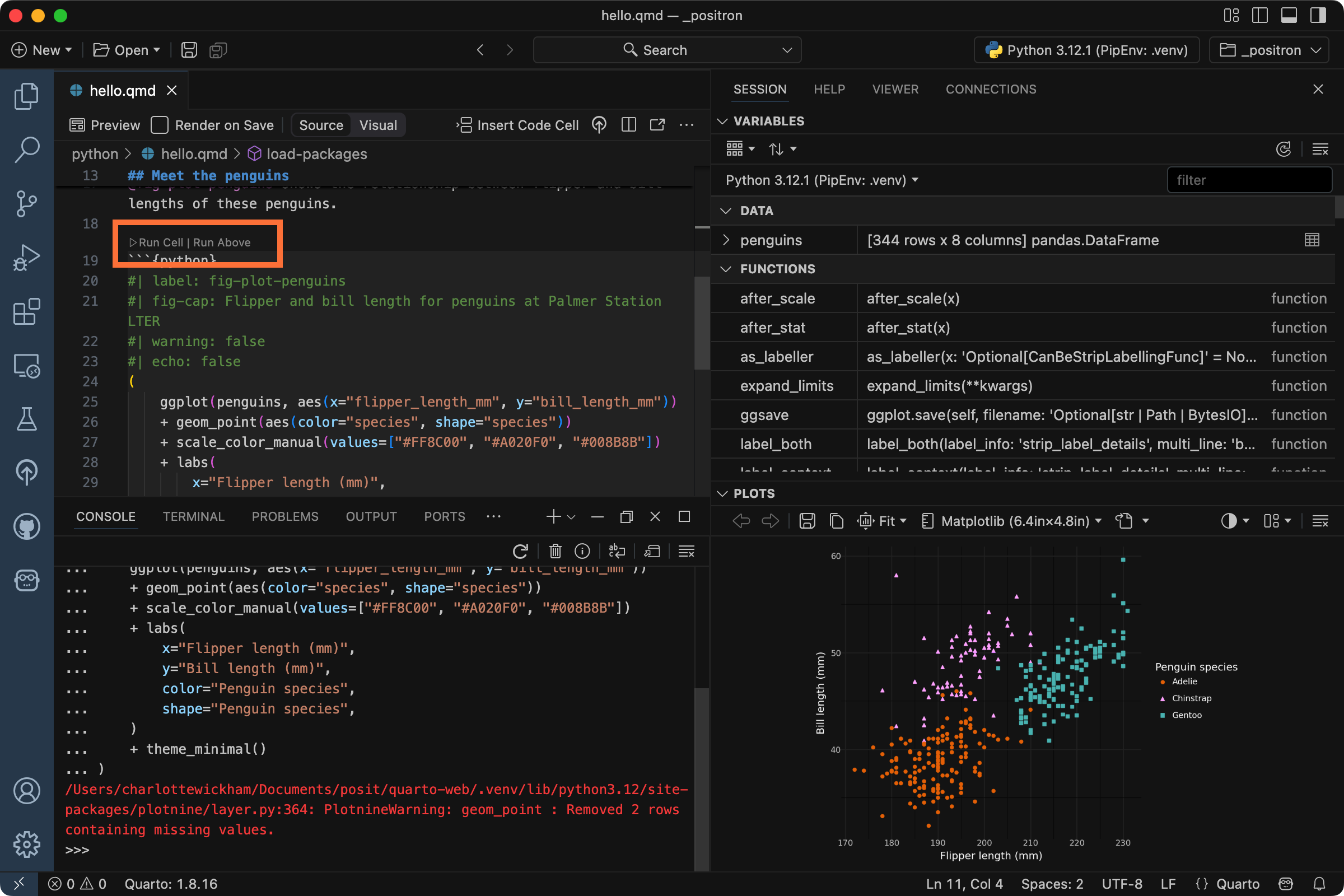

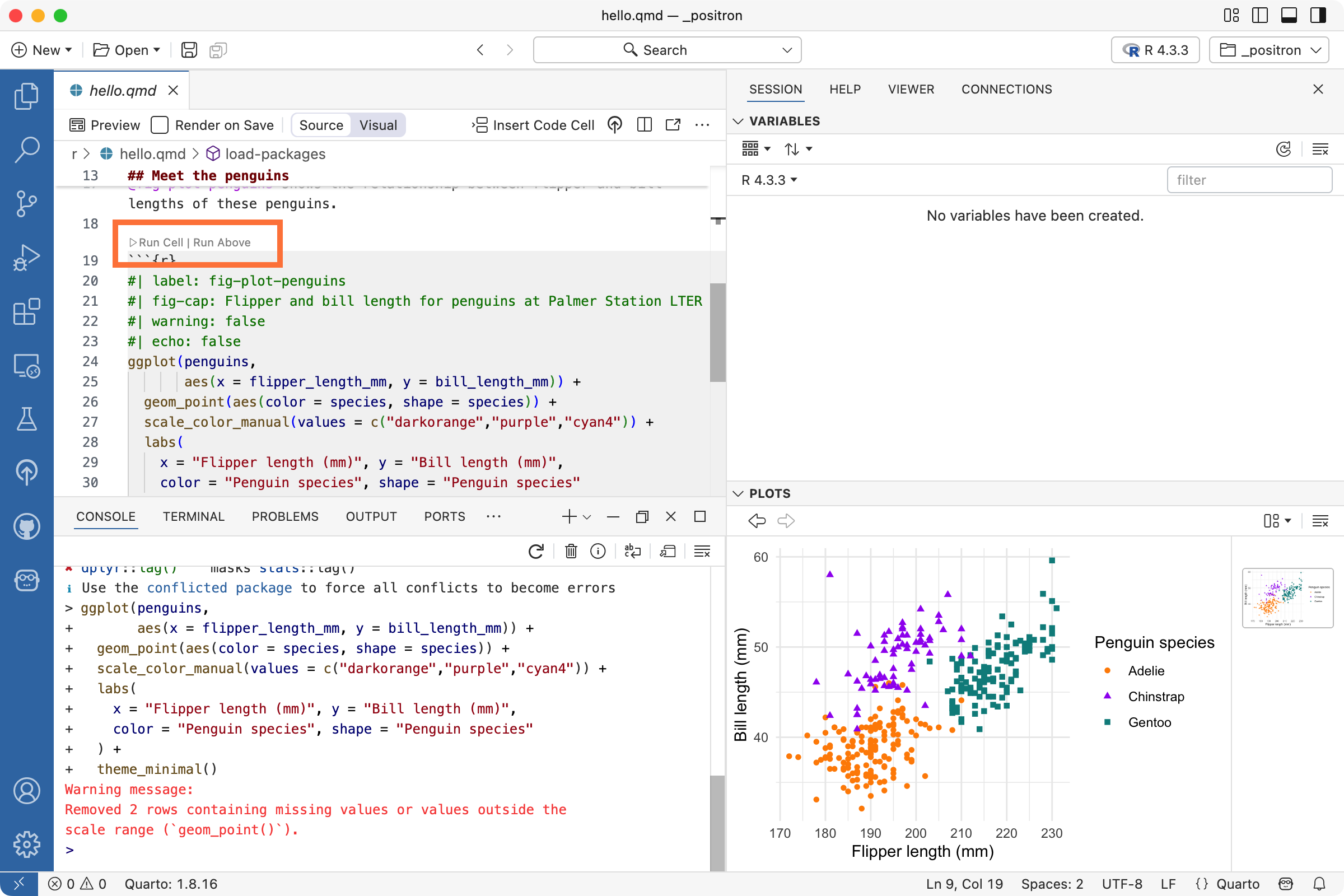

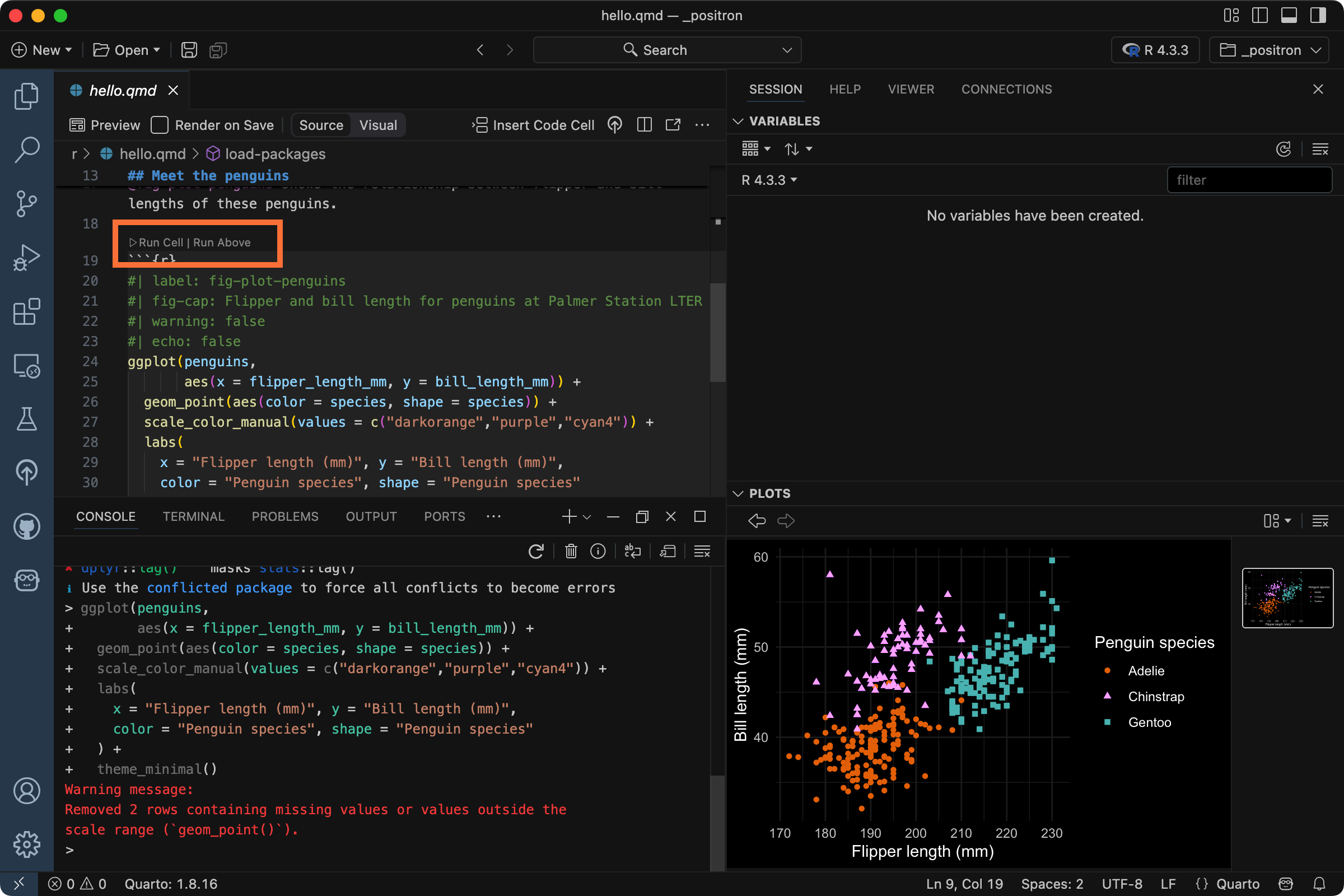

In addition to rendering the complete document to view the results of code cells, you can also run each code cell interactively. Use the command: Quarto: Run Cell, the keyboard shortcut (), or click Run Cell directly above the cell in the Editor. Positron executes the code in the Console and displays the results.

R

Python

Markdown text

Narrative content is written using markdown. For example, the following excerpt includes a section heading (## heading), text formatted as code (`code`) and a link ([text](url)):

R

## Meet the Palmer penguins

The `penguins` data from the [**palmerpenguins**](https://allisonhorst.github.io/palmerpenguins) package contains...

Python

## Meet the Palmer penguins

The `penguins` data from the [plotnine](https://plotnine.org/reference/penguins.html) package contains...

Quarto supports markdown syntax for basic text formatting, tables, and images, as well as advanced features like citations, cross-references, and equations. You can learn more about markdown in the Markdown Basics documentation.

How it works

R

When you render a Quarto document, first knitr executes all of the code cells and creates a new markdown (.md) document, which includes the code and its output.

The markdown file generated is then processed by pandoc, which creates the finished format.

Python

When you render a Quarto document, first jupyter executes all of the code cells and creates a new markdown (.md) document, which includes the code and its output.

The markdown file generated is then processed by pandoc, which creates the finished format.

TipR or Python? Does it matter?

When a Quarto document includes executable code cells, Quarto uses what is known as an engine to execute them. If you’re following along with this tutorial with R, you have been using the knitr engine. If you’re following along with Python, you have been using the jupyter engine. You can read more about how Quarto chooses an engine in Engine Binding.

Quarto supports other languages in addition to R and Python for code cells like Julia (via the julia engine or the jupyter engine) and Observable JS.

Next Up

You now know the basics of creating and authoring Quarto documents. The following tutorials explore Quarto in more depth:

• Tutorial: Computations — Learn how to tailor the behavior and output of executable code blocks.

• Tutorial: Authoring — Learn more about output formats and technical writing features like citations, crossrefs, and advanced layout.
